When coating stamps, punches and coin minting dies, ensuring surface quality is essential. These surfaces require smooth, dustless coatings with excellent adhesion to accurately replicate highly detailed relief structures. The requirements increase when minting dies are used to produce proof coins, where temperature-sensitive materials are often used. They have narrow tolerances and can only be coated within a certain temperature range.

We fulfill these requirements with Custom Coating Solutions

  • The surface to be coated faces downwards to keep it dust-free; the target is placed on the underside of the coating chamber
  • SPUTTER technology from PLATIT, supported by LGD® (Lateral Glow Discharge) guarantees smooth coatings with very good adhesion; thus, there are no droplets and no layer defects
  • The temperature is kept in a narrow range
Sample Custom Coating Solution S-MPuls for coin minting dies of Monnaie De Paris

For coin minting dies, PLATIT has developed a Custom Coating Solution for high-quality coatings with a good amorphous structure as well as high density, surface quality and reproduction accuracy.

Technologies applied:

  • 1 x DC pulsed magnetron SPUTTER cathode with a rotating magnetic field
  • SPUTTER source arranged at the bottom of the chamber

Etching technologies applied:

  • LGD®
  • Plasma etching with argon,
    glow discharge, with auxiliary anode

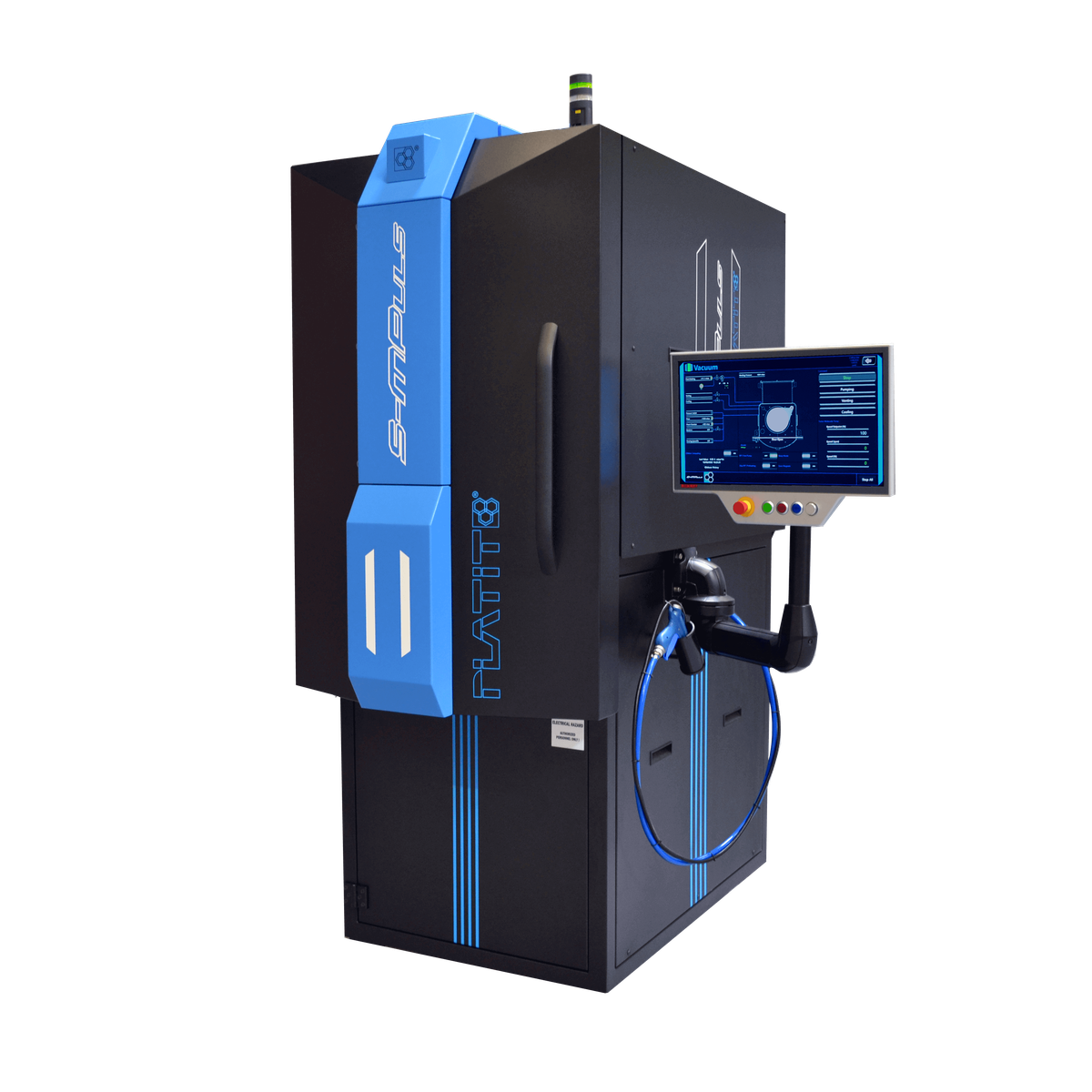

Coin punches coating unit S-MPuls

Load and cycle times:

  • 4 - 6 batches/day
    with a batch time of 3.5h
  • Coating diameter with defined coating thickness [mm]: ø70 - 250
  • Substrate holder: ø300mm, varying customer-specific versions possible
  • Load up to 20kg

Software:

  • Simple use and maintenance

  • PLATIT’s SmartSoftware (PC and PLC system)

  • Modern control system with touch screen

  • Statistics and help function via user interface

  • Data recording and real-time display of process parameters and flow

  • Manual and automatic process control

  • Remote diagnostics and maintenance

Machine dimensions:

  • Door opening [mm]: B450 x H615
  • Footprint (coating unit with electrical cabinet) [mm]:
    W945 x D1403 x H2068 +
    W608 x D1369 x H2068

Teaser movie of Custom Coating Solution S-MPuls, dedicated for coin minting application

S-MPuls Custom Coating Solution presented at World Money Fair 2021
